BAG3

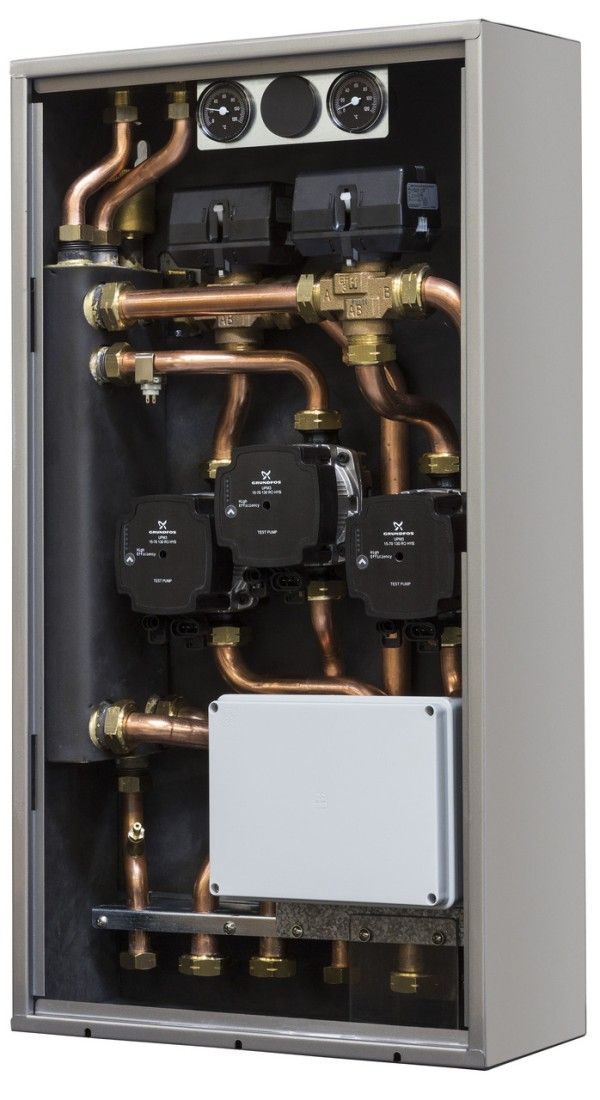

BAG hydraulic separator is an accessory to be matched with wall-hung and floor-standing boilers that can be installed outdoor or in a in-wall place.

– BAG3 for high-flow rate direct circuit (1, 2 or 3 zones) works as a hydraulic separator between boiler and high-flow rate circuits. Equipped with self modulating energy-efficient circulators.

– BAG3 MIX and BAG3 2 MIX for high-flow rate direct and mixed circuits, work as hydraulic separators between boiler and double or triple temperature circuits. Equipped with self modulating energy-efficient circulators.

– BAG3 MIX Family Condens for direct and mixed circuit: mixing valve and mixed circuit pump are controlled by the electronic board supplied as standard, that can be located inside the boiler.

– Energy-efficient circulators

– Suitable for in-wall and outdoor installation

– Galvanized sheet that can be white painted

– BAG3 and BAG3 M are supplied as standard with limit thermostat for low temperature circuits.

Hydraulic separator
Low-energy circulators
